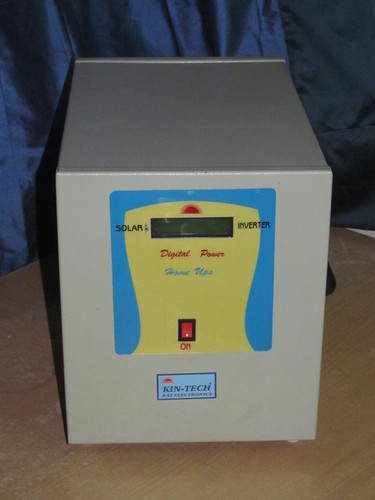

Inverter

Inverter
Inverter
Product Code : 01
Product Description










SOLAR INVERTER PCU SINGLE PHASE










Solar Inverter 2KW to 20KW







System Rating (kW) 2KW 4KW 6KW 10KW 12KW 15KW 20KW

MPPT Range 100V - 350V 200V - 450 V

Open Circuit Voltage (Voc)
240V



420V

Maximum PV power recommended (KW) 4 8 12 20 24 30 40

Switching Element IGBT

Controller DSP controlled

Type of Charger MPPT

Input Supply 230 VAC , 50 Hz (-20%, +15%), 1 Phase 2 Wire






Battery Voltage (V) 120V / 180V 180V / 240V

Grid through Battery charging
capacity (% kW Rating)
0 - 100%

Inverter







Switching Element IGBT

Control DSP controlled

Nominal Output Voltage, Frequency (Hz)
230 VAC, 50 Hz, 1 phase 2 Wire





Output Waveform


Sine wave



Load Power factor
0.8 lag to 1 (within kVA and kW rating)





Voltage regulation


2%



Cooling


Fored Air



Galvanic Isolation
Inbuilt isolation transformer at inverter output





Protection Under / Over voltage for Input, Output,Array & Battery.Output overload,
Short circuit MCB & Surge protection at Input, output,Array & Battery

Display parameter 1.Array - Voltage, Current, Power.
2.Battery - Voltage, Current
3. Grid - Voltage, Current
4. Output - Voltage, Current, Inv.

Solar / Grid Sharing Automatic if less solar share with grid etc

Environment







Temperature Operating


0 - 55 C



Max. Relative Humidity @ 25 C (non Condensing)


Up to 95%
